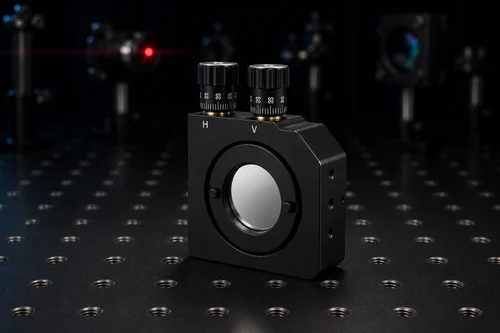

Gimbal Mirror Mount designed for precise multi-axis angular positioning of large optical components. Featuring a true gimbal mechanism, it enables smooth rotation about the optical center while eliminating unwanted linear displacement and maintaining optical alignment accuracy.

The mount is specifically optimized for large optical elements and complex optical assemblies, providing smooth and reliable adjustment while maintaining system integrity in high-precision environments.

Applications

•  Laser cavity alignment and stabilization
•  High-power laser systems
•  Optical beam steering and control
•  Photonics and optics research laboratories
•  Interferometry and precision measurement systems
•  Crystal and lens alignment applications
•  Scientific instrumentation and optical testing setups

Key Features

•  True gimbal design for independent multi-axis angular positioning
•  Rotation about the optical center without linear displacement
•  Eliminates parasitic motion and optical path length changes
•  High-precision adjustment with excellent repeatability
•  Stress-relieved, high-stability alloy construction
•  Suitable for large mirrors, lenses, and crystal assemblies
•  Exceptional mechanical rigidity and alignment stability
•  Ideal for demanding laser and photonics applications

The combination of precision engineering, true gimbal mechanics, and superior structural stability makes the Gimbal Mirror Mount an essential component for advanced optical systems, laser cavity configurations, scientific research, and high-accuracy photonics applications.
